1SCA022399R6830 – OTP36A3M ABB 3P Pole Isolator Switch

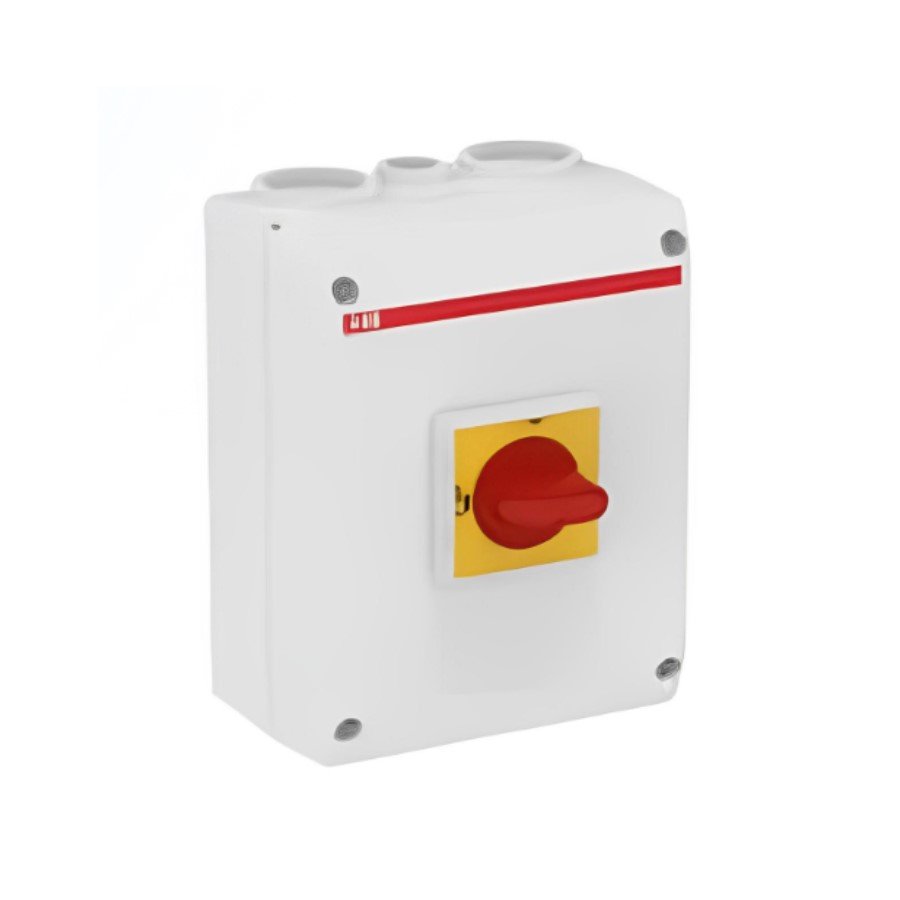

ABB 3P Pole Isolator Switch – Model No: 1SCA022399R6830 (OTP36A3M)

The ABB OTP36A3M is a high-quality 3-pole isolator switch designed for safely disconnecting electrical circuits in industrial and commercial applications. It is used to isolate faulty sections of the electrical system for maintenance or repairs, providing protection against electrical hazards.

Product Overview:

• Model Number: 1SCA022399R6830 (OTP36A3M)
• Type: 3-Pole Isolator Switch
• Brand: ABB
• Current Rating: 36 Amps (A)
• Voltage: 400V AC
• Power Rating: Typically rated for up to 15 kW (depending on specific application and conditions)
• Poles: 3-Pole (three-phase systems)
• Housing Material: Durable plastic
• Ingress Protection (IP): IP65 (dust-tight and protected against water jets)
• Mounting Type: Top and bottom insertion for easy installation

Key Features:

1. 3-Pole Configuration: The OTP36A3M isolator switch is a 3-pole switch, ideal for three-phase electrical systems, providing isolation for all three phases to ensure complete disconnection of electrical power during maintenance.
2. 36A Maximum Current: Designed to handle up to 36 Amps, making it suitable for medium-power industrial and commercial electrical installations.
3. 400V AC Rating: Rated for 400V AC, making it compatible with most industrial power systems.
4. IP65 Protection: The IP65 rating means that the switch is dust-tight and protected against water jets, which is essential for outdoor installations or environments where dust and moisture could be present.
5. Plastic Housing: The switch comes with a robust plastic housing, providing reliable protection against physical damage and environmental factors.
6. Visibility and Safety: The switch typically features a high-visibility handle, often in red or yellow, to ensure it is easily identifiable and operable by personnel.
7. Mounting Ease: Designed for top and bottom insertion, making the installation process quick and easy, providing flexibility in mounting.

Applications:

• Industrial Machinery: The switch is commonly used in industrial machinery and motor control panels to safely isolate circuits during maintenance or troubleshooting.
• Power Distribution Systems: Suitable for use in power distribution networks where isolating specific sections of the system is necessary to prevent overloads or for safety purposes.
• Commercial Electrical Installations: Can be used in commercial buildings to isolate specific circuits or equipment for servicing.
• Outdoor/Harsh Environments: With an IP65 rating, this switch is ideal for outdoor installations or environments that require protection against dust, moisture, and weather elements.

Benefits:

• Enhanced Safety: Provides a safe means of isolating electrical circuits, preventing electrical accidents during maintenance or repairs.
• Durability: The IP65 protection and robust housing ensure reliable performance, even in challenging environments.
• Easy Installation: The top and bottom mounting feature allows for straightforward installation in electrical panels or enclosures.
• Versatile: Suitable for a wide range of applications in industrial, commercial, and outdoor environments.

Technical Specifications:

• Model Number: 1SCA022399R6830 (OTP36A3M)
• Current Rating: 36A
• Voltage Rating: 400V AC
• Power Rating: Typically 15 kW (depending on conditions)
• Poles: 3-Pole
• Ingress Protection (IP): IP65 (dust-tight and protected against water jets)
• Mounting: Top and bottom insertion
• Housing: Plastic
• Handle: Red or yellow handle for high visibility

This ABB OTP36A3M 3-Pole Isolator Switch is designed to provide reliable and safe electrical isolation, ensuring maximum protection for electrical systems in industrial and commercial environments.
