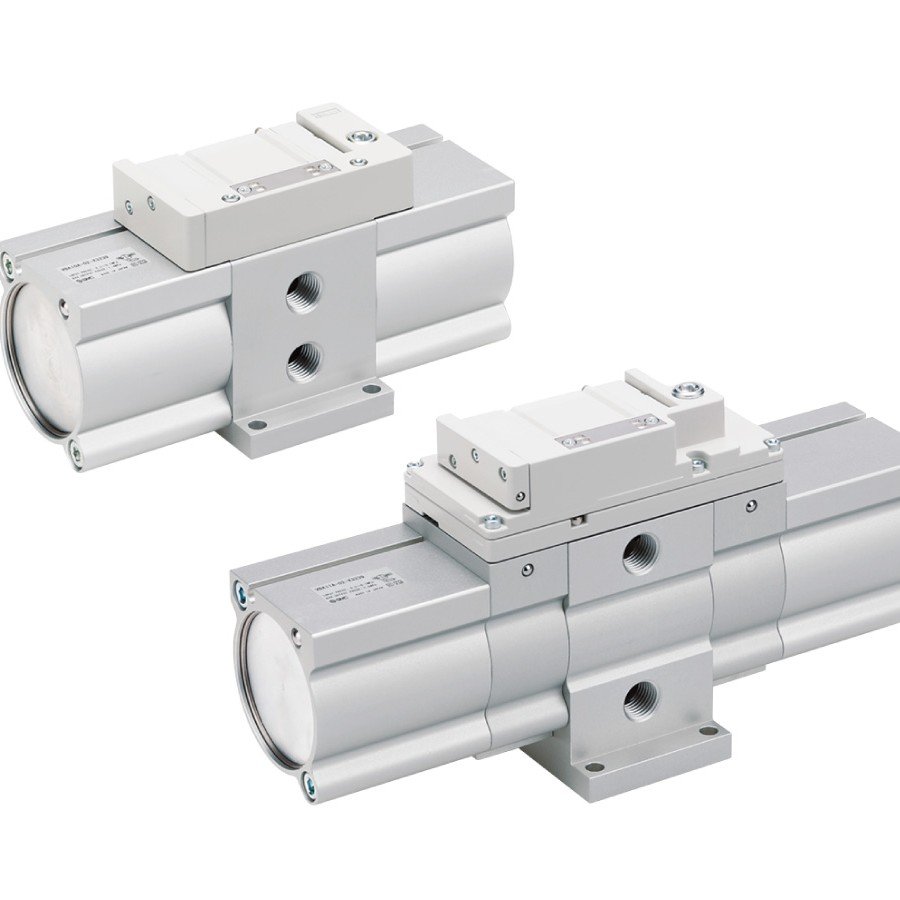

SMC VBA10A/11A Booster Regulator – Air-Driven Pressure Amplifier
WOW Electricals supplies the SMC VBA10A/11A Booster Regulator, a high-performance pneumatic solution designed to increase compressed air line pressure without electrical power. This booster regulator is ideal for industrial applications where localized higher pressure is required, improving efficiency while reducing overall energy costs.
🔹 Key Features of SMC VBA10A/11A Booster Regulator
-
Air-Driven Pressure Boost
-
VBA10A: Doubles inlet pressure (2× boost).
-
VBA11A: Amplifies pressure up to 4× for demanding applications.
-
-
Energy Saving Operation – Works without electricity and can reduce compressed air usage by up to 30%.
-
High Performance – Provides 30% more flow and up to 60% faster charging time when boosting at 4× pressure.
-
Long Service Life – Built for over 50 million cycles, ensuring durability in continuous industrial use.
-
Compact & Easy to Install – Horizontal or vertical mounting with optional accessories like pressure gauges, silencers, and auto-switches for monitoring.
📊 Technical Specifications
| Feature | VBA10A (2× Boost) | VBA11A (4× Boost) |
|---|---|---|
| Pressure Ratio | 2× (fixed) | 4× (fixed) |
| Max Flow Rate | 250 l/min (ANR) | 90 l/min (ANR) |
| Outlet Pressure Range | 0.4 – 1.4 MPa | 0.8 – 2.0 MPa |
| Inlet Pressure Range | 0.2 – 0.7 MPa | 0.2 – 0.5 MPa |
| Proof Pressure | 2.1 MPa | 3.0 MPa |
| Port Size | Rc 1/4 (IN/OUT & gauge) | Rc 1/4 |
| Temperature Range | 2 °C to 50 °C (no freezing) | 2 °C to 50 °C (no freezing) |
| Weight | Approx. 0.95 kg | Approx. 1.6 kg |
| Installation | Horizontal / Vertical | Horizontal / Vertical |
⚙️ Applications & Benefits
-
Localized Pressure Boosting – Supplies higher pressure only where needed, avoiding system-wide pressure increases.
-
Industrial Automation – Enhances actuator speed and performance in pneumatic circuits.
-
Energy & Cost Savings – Reduces compressor load and operational costs.
-
Retrofitting Made Easy – Compact size makes it suitable for space-limited installations.
-
Tank Charging – Provides faster charging times in storage tanks and pneumatic systems.
✅ Summary
The SMC VBA10A/11A Booster Regulator is a reliable, air-powered pressure amplifier that boosts compressed air pressure up to four times without electricity. Designed for industrial pneumatic systems, it improves efficiency, reduces energy consumption, and delivers long-lasting performance.
WOW Electricals is a trusted supplier of SMC pneumatic products across Oman, Saudi Arabia, UAE, Qatar, Kuwait, Turkey, and worldwide exports.
