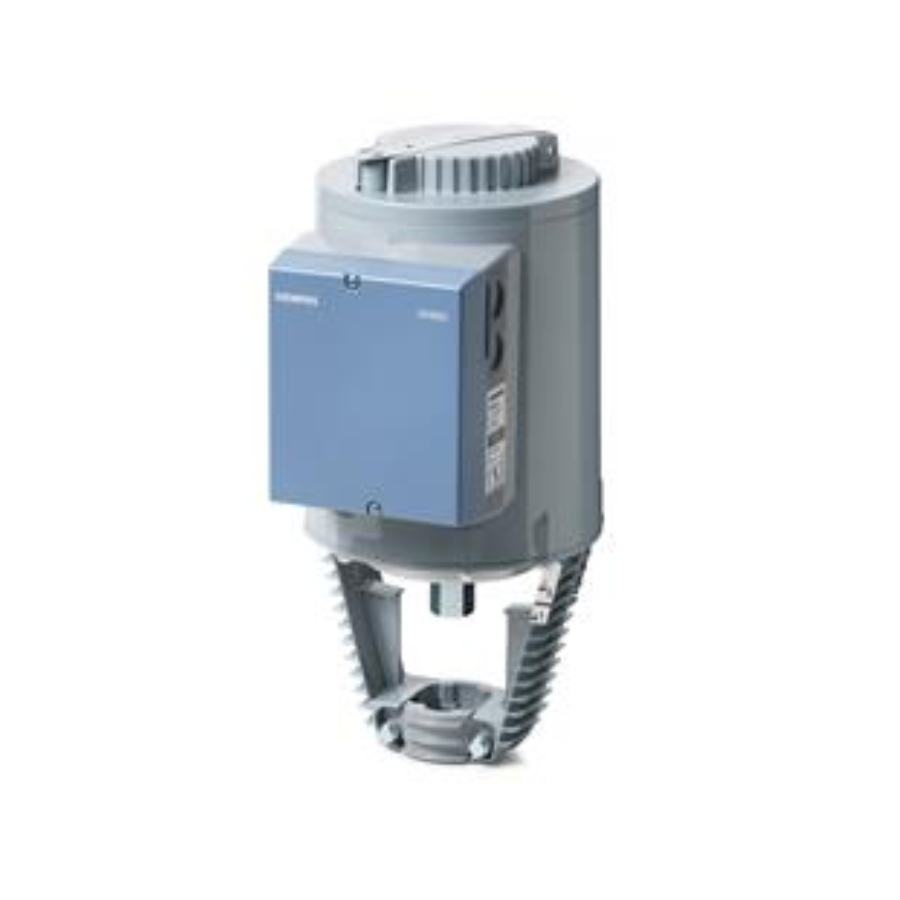

SKB62UA Siemens Flowrite Electro-Hydraulic Actuator

The SKB62UA Siemens Flowrite Electro-Hydraulic Actuator is a proportional valve actuator designed for use with Flowrite and other standard valves with a 3/4-inch stroke. This actuator offers precise control and advanced functionality for various industrial and HVAC applications.

Key Features:

• Power Supply: Operates on 24 Vac and provides a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve.
• Thrust: Delivers up to 1000 lb (4000 N) of thrust for powerful valve operation.
• Spring Return: Includes spring return functionality, ensuring reliable return to the default position in case of power failure.
• Stroke Calibration: Automatic stroke calibration for ease of installation and reliable performance.
• Manual Override: Allows manual control if needed during system failure or maintenance.
• Die-Cast Aluminum Housing: Durable and robust construction for protection against environmental factors.
• Selectable Operating Direction: Choose between direct or reverse acting for flexibility in system design.
• Adjustable Start and Span: Provides customization for precise control.
• Stroke Limit Control: Enables adjustment of stroke limits for better system control.
• Flow Characteristics: Option to select between linear or equal-percentage flow characteristics for specific application needs.

The SKB62UA Siemens Flowrite Actuator is a powerful, flexible solution for electronic valve control, offering high thrust, advanced features, and easy integration into various systems.
