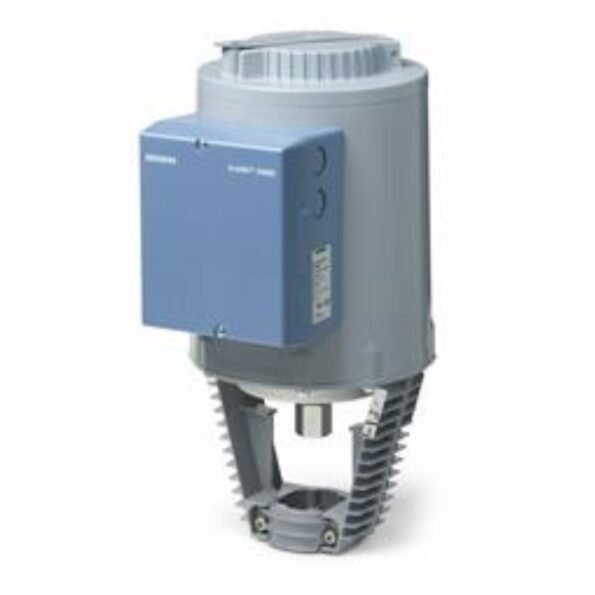

Siemens SKB60 Electrohydraulic Actuator – 2800 N, 20 mm Stroke, AC 24 V, DC 0…10 V / 4…20 mA
The Siemens SKB60 Electrohydraulic Actuator is engineered for precise and reliable valve control in demanding HVAC and industrial applications. Delivering a powerful 2800 N force with a 20 mm stroke, this actuator ensures smooth, accurate positioning with overload protection via travel-dependent electronic end-position switching.
Constructed with a durable die-cast aluminium housing and robust yoke, the SKB60 is designed for longevity, even in harsh environments. It offers manual control, an optional auxiliary switch for added flexibility, and adjustable position feedback for enhanced control accuracy.
Key Features & Benefits
-
Powerful 2800 N force output for demanding valve operations
-
AC 24 V supply with DC 0…10 V / 4…20 mA / 0…1000 Ohm positioning signal
-
Overload-proof design for long-term reliability
-
Manual override for operational flexibility
-
IP54 protection rating for dust and water resistance
-
Suitable for media temperatures from -25°C to 220°C
-
UL listed for SKB..U and SKB..UA variants
-
Compatible with MK..6.. control devices per DIN EN 14597 safety standards
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | AC 24 V, 24 V |
| Positioning Signal | DC 0…10 V, 4…20 mA, 0…1000 Ohm |
| Positioning Time | Open: 120 s, Close: 10 s |
| Stroke | 20 mm |
| Spring Return Function | No |
| Position Feedback | Adjustable |
| Degree of Protection | IP54 |
| Medium Temperature | -25…220 °C |
| Ambient Temperature | -15…55 °C |
| Mounting Position | Upright to horizontal |
| Dimensions (W x H x D) | 178 x 375 x 226 mm |
Your Trusted Source in the Gulf & Beyond
WOW Electricals is an authorised partner, supplier, and distributor of Siemens actuators, serving Saudi Arabia, UAE, Qatar, Oman, Bahrain, Kuwait, Egypt, Indonesia, and Malaysia. Order online at www.wowelectricals.com for free delivery, easy returns, and the best market price.
