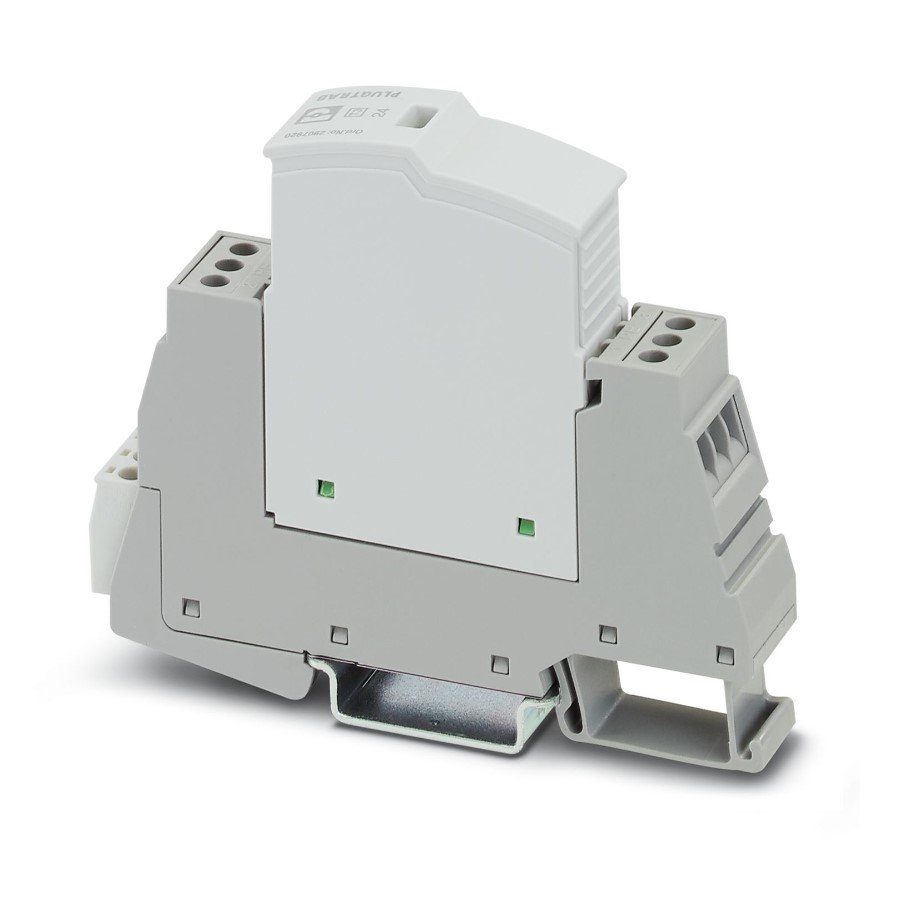

2907916 Surge Protection Device

The PLT-SEC-T3-24-FM-UT (2907916) is a Type 3 surge protection device designed to protect electrical systems and sensitive equipment from transient voltage spikes and surges. Here’s a unique and basic overview of this device:

Key Features:

1. Type 3 Surge Protection: The device is classified as a Type 3 surge protector, which means it is primarily used for final protection against surges in the distribution circuits, typically closer to sensitive equipment. It works as a secondary level of defense, following Type 1 and Type 2 surge protection devices.

2. Nominal Voltage: It operates at a nominal voltage of 24 V AC/DC, making it suitable for low-voltage applications, such as industrial control systems, security equipment, and other low-voltage circuits.

3. Protective Plug and Base Element: The surge protection consists of two main components:

   • Protective Plug: This component absorbs and diverts the surge to ground, protecting the connected equipment.
   • Base Element: The base serves as the mount for the protective plug and contains internal circuitry to manage the surge energy.

4. Integrated Status Indicator: The device features an integrated status indicator, which allows users to easily see whether the surge protector is functioning correctly or if it has been compromised by excessive surges. The status indicator helps to ensure that the device is operational.

5. Remote Signaling: The PLT-SEC-T3-24-FM-UT also includes remote signaling, which provides notifications (such as alarms or alerts) to a central monitoring system if the device is triggered by a surge. This feature is useful for real-time monitoring and maintenance of surge protection systems.

6. Single-Phase Power Supply Networks: It is designed specifically for use in single-phase power supply networks, making it suitable for residential, commercial, and light industrial applications where single-phase power is used.

Benefits:

• Enhanced Protection: The Type 3 classification ensures that the device can protect sensitive equipment from damaging surges or spikes, reducing the risk of downtime, equipment failure, or electrical hazards.
• Quick Identification of Failures: The status indicator allows for easy and immediate detection of any issues with the surge protector, enabling prompt replacement or maintenance.
• Remote Monitoring: The remote signaling feature allows users to monitor the status of surge protection from a distance, enhancing the overall safety and efficiency of the electrical system.
• Easy Installation: The surge protector is designed for straightforward installation, with the plug-and-base design providing flexibility in mounting and integration.

Applications:

• Industrial Control Systems: The device is used in industrial systems where equipment is sensitive to voltage fluctuations, ensuring protection for critical operations.
• Security Systems: It’s commonly applied in security equipment and cameras to prevent damage from electrical surges.
• Low-Voltage Circuits: Ideal for low-voltage power supply networks where surge protection is necessary to ensure reliable operation and protection of sensitive components.

Technical Details:

• Manufacturer: PLT (or the specific manufacturer for this surge protection series)
• Model Number: PLT-SEC-T3-24-FM-UT (2907916)
• Nominal Voltage: 24 V AC/DC
• Protection Type: Type 3 surge protection
• Signaling: Remote signaling and status indicator
• Application: Single-phase power supply networks
• Design: Protective plug and base element configuration

Why Choose the PLT-SEC-T3-24-FM-UT:

This surge protection device provides a reliable, cost-effective solution for safeguarding sensitive electrical equipment from voltage spikes. Its combination of status indication, remote signaling, and type-specific surge protection makes it ideal for a variety of low-voltage applications where protection against transient overvoltages is critical.
