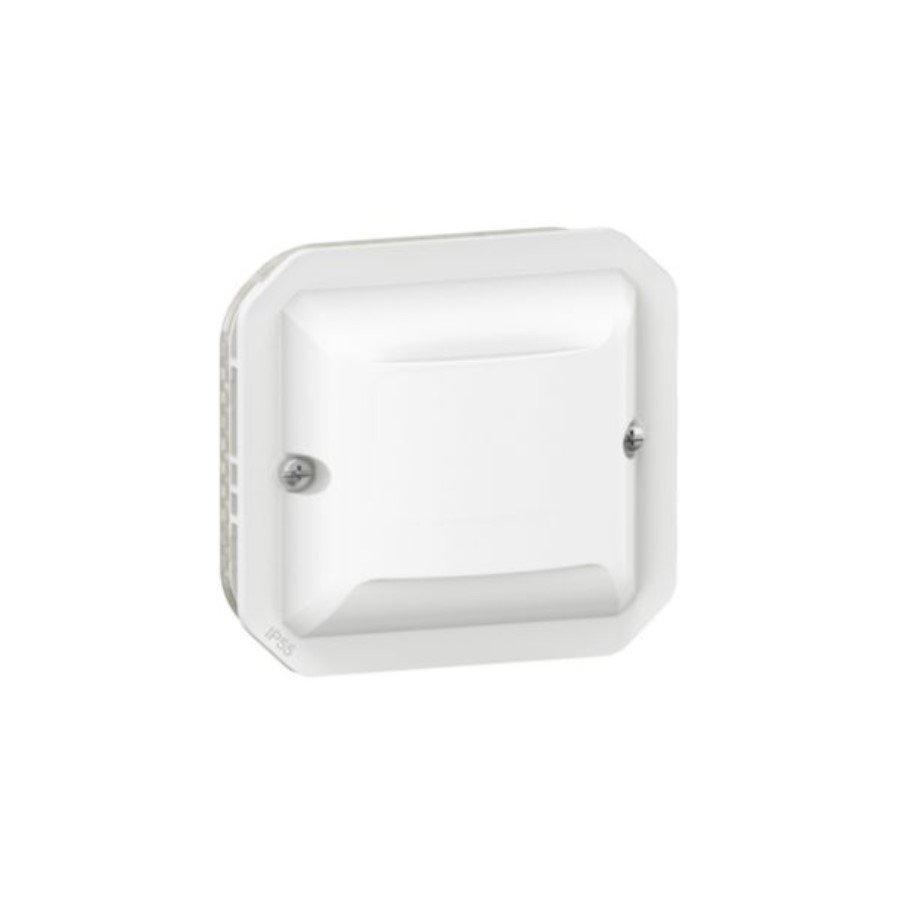

Legrand 069520LA PLEXO NEW 2-wire wet room

Damp room switch range PLEXO NEW 2-wire motion detector without neutral conductor for automatic switching of consumers when people are detected within the detection area. Equipped with electronic overvoltage and short-circuit protection. Connection using screw terminals. The inserts can be used with the corresponding housings and frames for surface or flush-mounted installation. Color: gray/white. Protection class: IP55.
Detection range: 120°; suitable for extensions; detection range: 2 – 8 m in stages; switch-off delay: 5 seconds – 30 minutes; brightness threshold: 5 – 1275 lux; stand-by consumption: 0.01 W
Suitable for the following load types: LEDs: 2 to 100W; compact fluorescent lamps: 2 – 100 W; incandescent and HV halogen lamps: 2 – 150 W; LEDs, compact fluorescent lamps, halogen lamps and fluorescent lamps with ferromagnetic or electronic
ballast: 2 – 150 VA A
maximum of 10 detectors can be controlled via the extension input using a button (normally closed contact). If sensors are connected in parallel (max. 3), the minimum load increases (see data sheet).

Brand: Legrand
