Legrand 001523

Description

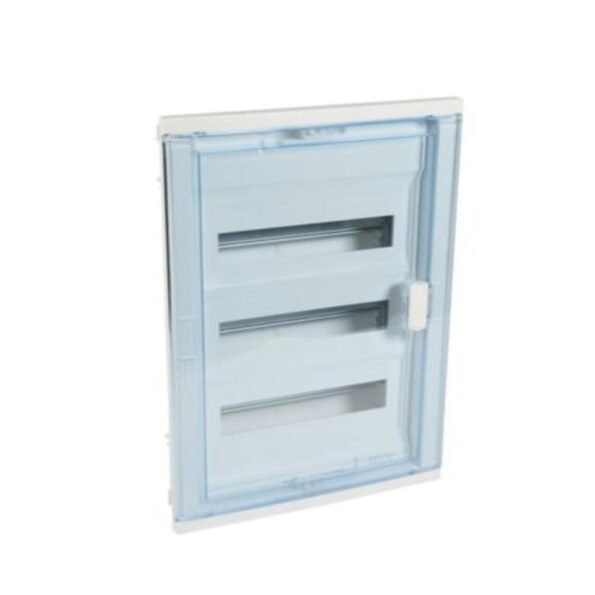

Embedded box 3 row 36+6 TRANSPARENT door modules. Built-in box – For hollow or conventional partitions – 12 modules per row (+2 cuttable) – Equipped with reversible doors with handles suitable for key locks ref. 0 014 91 – Supplied with IP 2X automatic connection terminal block for protective conductors, fixing legs for prefabricated partitions and separable shutters per module and half module – Distance between rails 125mm With transparent insulating door – Number of rows: 3 – Number of modules: 36 + 6 – Dimensions of the embedding hole (mm): 555x330x86. Nedbox modular recessed box – Self-extinguishing: resistance to incandescent wire 750° according to EN 60695-2-11 standard. In accordance with the regulations for installation in public places – Class II – IP 40 – IK 07 – They comply with the IEC 62 208 standard: which allows the creation of assemblies in accordance with IEC 61 439-3.
