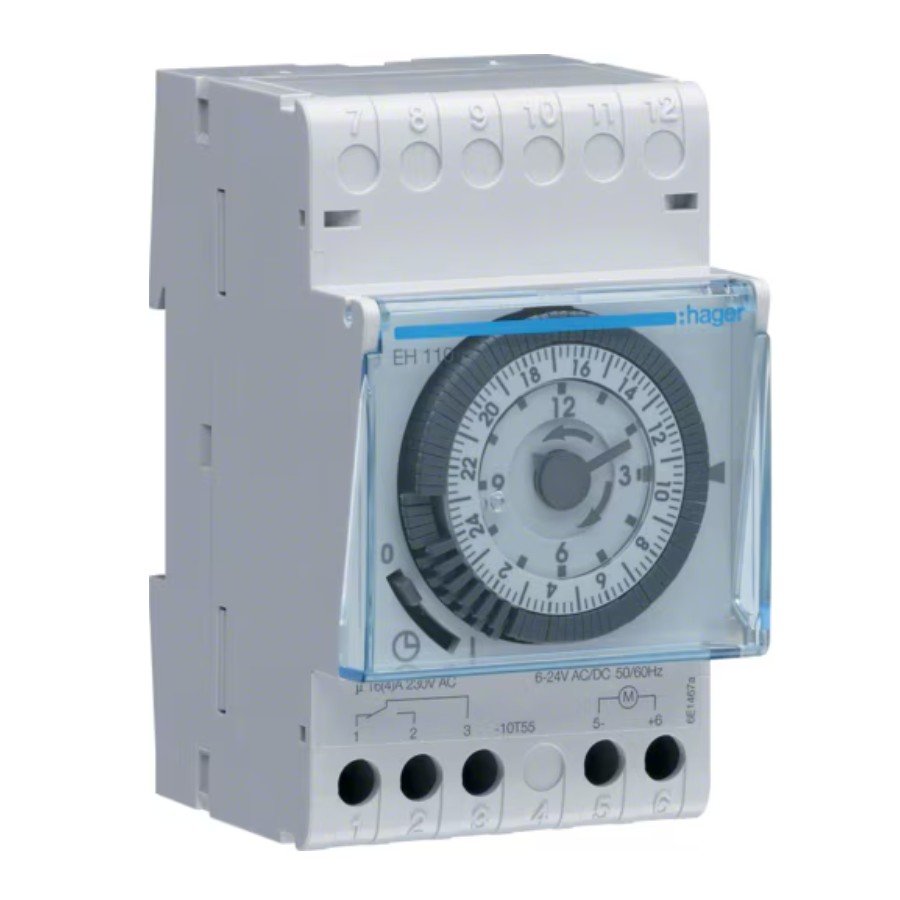

EHN110 Daily time switch 1 channel, 3 modules

The Hager EHN110 is a 1-channel daily time switch with 3 modules. It is designed for controlling the on/off switching of electrical devices based on a pre-programmed schedule. Here’s an overview of its key features and specifications:

Key Features:

• 1 Channel: This means it can control a single load or circuit, making it ideal for applications like lighting, heating systems, or ventilation.
• Daily Programming: It allows for daily scheduling of electrical devices, enabling you to set specific times when the device should turn on or off throughout the day.
• 3 Modules: The time switch occupies 3 modules of space in a DIN rail, which is a standard for electrical equipment installation in distribution boards.
• Precision and Reliability: The Hager EHN110 time switch is known for its precision and reliability in timing control.
• User-Friendly Interface: It generally features an easy-to-use display and control buttons for setting the time and programming.
• Integrated Battery Backup: Many time switches, including this model, come with a battery backup to retain the time settings even during a power failure.

Technical Specifications:

• Power Supply: Typically operates on 230V AC, the standard for domestic and industrial settings.
• Switching Capacity: The time switch can control devices that typically require a switching capacity of up to 16A (depending on the load).
• Contact Type: It usually comes with potential-free contacts, meaning it does not require a direct connection to a live wire, allowing it to be used in a wide variety of applications.
• Manual Override: Some versions may offer a manual override function, allowing users to turn the connected device on or off without following the schedule.

Applications:

• Lighting Control: Ideal for automating the control of lighting systems in homes, offices, or outdoor spaces.
• Heating Systems: It can be used to control heating appliances based on set time intervals.
• Ventilation: This time switch can be used to control fans or ventilation systems.
• Industrial Uses: Often used in industrial setups where equipment needs to be turned on or off based on a time schedule.

Benefits:

• Energy Savings: Helps reduce energy consumption by ensuring devices only run when needed.
• Convenience: Automatically manages the scheduling of devices without the need for constant manual intervention.
• Cost-Effective: Offers a low-cost solution for time-based control of electrical systems, improving efficiency in homes or businesses.

If you need specific installation or operation instructions, these would typically be included in the manual provided with the unit or available on the Hager website.
