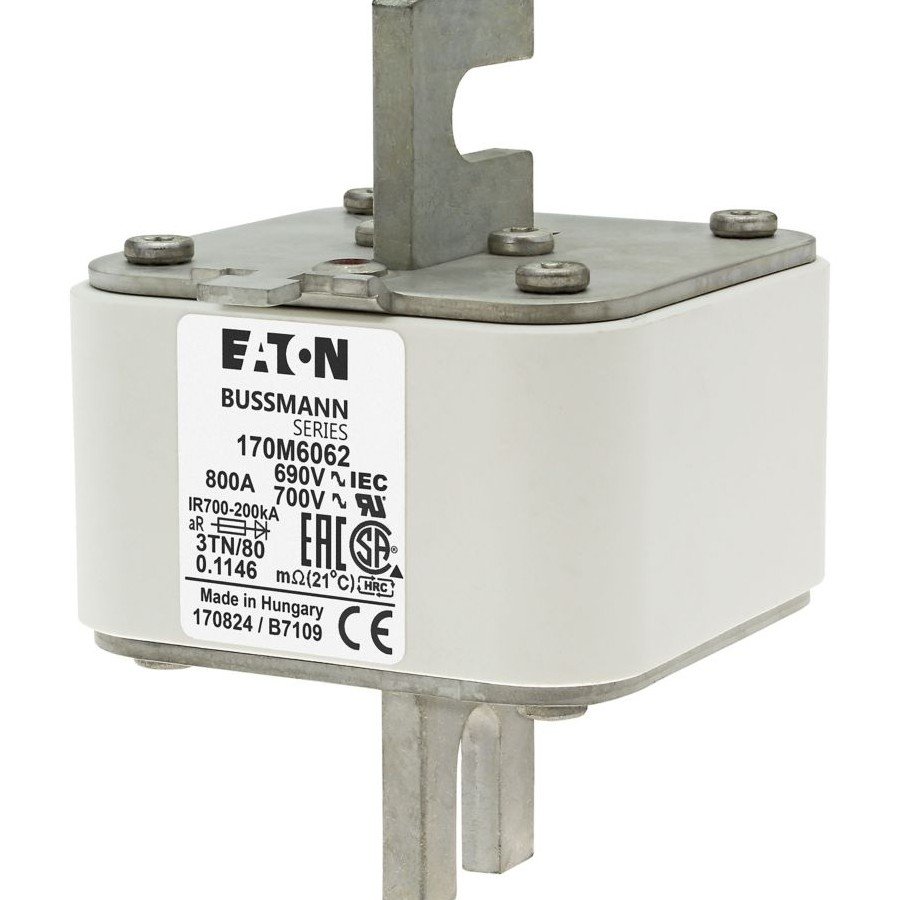

Eaton Bussmann 170M6062 High Speed Fuse

Eaton Bussmann 170M6062 High Speed Fuse – 800A, 690V AC

The Eaton Bussmann 170M6062 High Speed Fuse is a robust, square-body fuse engineered to protect sensitive semiconductor devices, DC drives, power converters, and rectifiers. With a rated current of 800A and a voltage capacity of 690V AC, this high-performance fuse ensures reliable circuit protection in demanding industrial environments.

Key Features & Benefits

• High-Speed Protection – Designed for semiconductor and power electronic applications with a utilization category of aR.

• Strong Breaking Capacity – Offers up to 200 kA interrupt rating, ensuring safety under high fault conditions.

• Top Fuse Status Indicator – Equipped with an easy-to-read indicator for quick fuse status checks.

• Reliable Construction – Square body with blade end connections and slotted center bolted tags for secure installation.

• Certified & Compliant – CE marked, RoHS compliant, UL recognized, and IEC rated for global standards compliance.

• Durable Performance – Delivers low power loss (115W), excellent clearing characteristics, and a long operational lifespan.

General Specifications

• Catalog Number: 170M6062

• EAN: 5996516017456

• UPC: 051712262699

• Current Rating: 800A

• Voltage Rating: 690V AC (IEC), 700V AC (UL)

• Breaking Capacity: 200 kA

• Utilization Category: aR

• Clearing (I²T): 465,000 (at 660V)

• Pre-arc (I²T): 69,500

• Mounting: M10 bolted connection

• Dimensions: 168 × 76 × 95 mm

• Weight: 1.384 kg

Applications

The Eaton Bussmann 170M6062 fuse is specially designed for:

• Semiconductor protection

• DC common bus systems

• DC drives & rectifiers

• Power converters & inverters

• Industrial electronic protection
