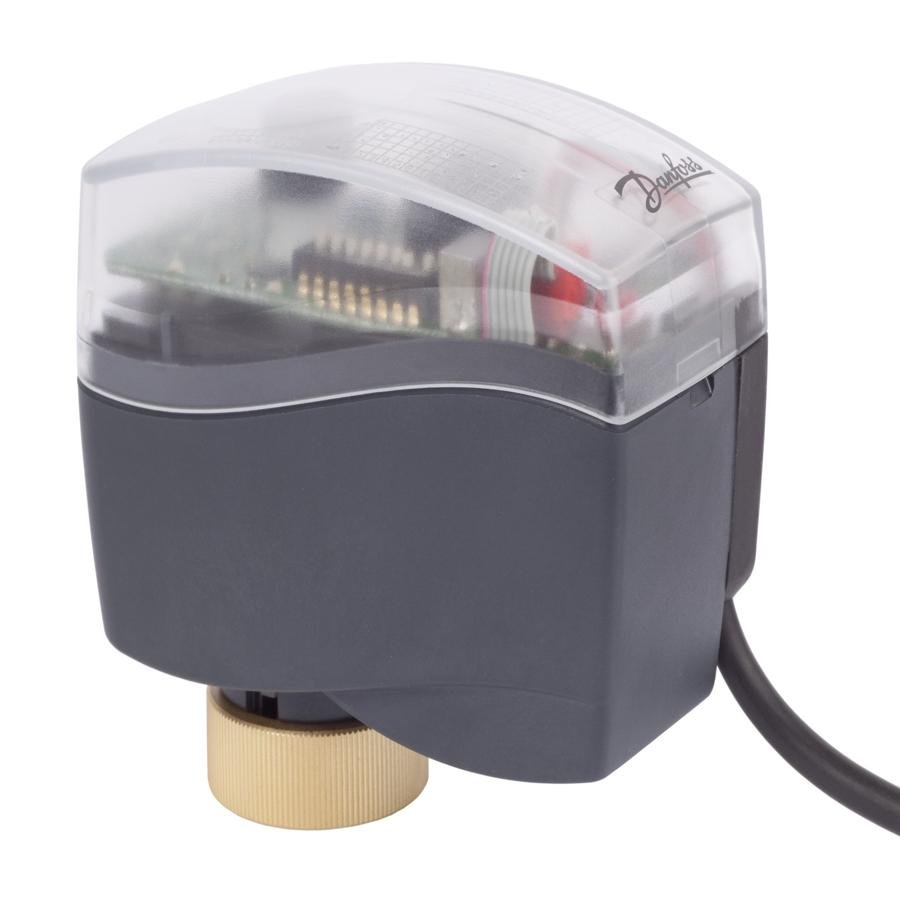

Danfoss AME 110 NL Actuator – 082H8057 | 24V, Modulating Control for AB-QM DN 10–32

The Danfoss AME 110 NL actuator (082H8057) is a high-quality gear actuator engineered for modulating control of Danfoss AB-QM pressure independent control valves (DN 10–32). Compact, reliable, and efficient, it ensures accurate flow regulation in HVAC systems, helping reduce energy consumption and optimize system performance.

Key Features & Benefits

• Control Type: Modulating actuator with 0(4)–20 mA or 0(2)–10 V input signal

• Stroke Length: 5 mm for precise valve positioning

• Supply Voltage: 24 V AC for safe and efficient operation

• Compatibility: Designed for AB-QM valve sizes DN 10–32

• Protection Class: IP42 for dependable indoor use

• Approval Standard: EC EN 60730 compliant

• Cable Length: 1.5 m factory-fitted cable for quick installation

• Eco-Compliant: EU RoHS compliant with exemptions, EPD available

Detailed Specifications

• Type: AME 110 NL 0–10V

• Gross Weight: 0.342 kg

• Net Weight: 0.338 kg

• Volume: 1.001 liters

• EAN: 5702421556603

• Product Group: Gear actuators

• Spindle Speed: 24 s/mm

• Operating Stroke: 5 mm

• China RoHS Compliance: Out of scope

• Contains Batteries: No

• EU RoHS Exemption Clause: 6(c)

• SCIP Dossier No.: 1a7d963c-4bcb-4cdc-9664-6ba05408d797

• SCIP Dossier Product Name: AMI. AME/AMV (1)

• REACH Candidate Substance: Lead (CAS no. 7439-92-1)

Applications

The Danfoss AME 110 NL actuator is widely used in:

• HVAC systems – precise flow regulation and energy optimization

• Commercial buildings – reliable climate and comfort control

• Industrial automation – accurate valve positioning and control

• Smart buildings – integration with modulating control solutions

Why Choose Danfoss AME 110 NL Actuator?

• High precision and long service life

• Easy to install with a compact design

• Eco-compliant with RoHS and EPD certifications

• Optimized performance when paired with Danfoss AB-QM valves
