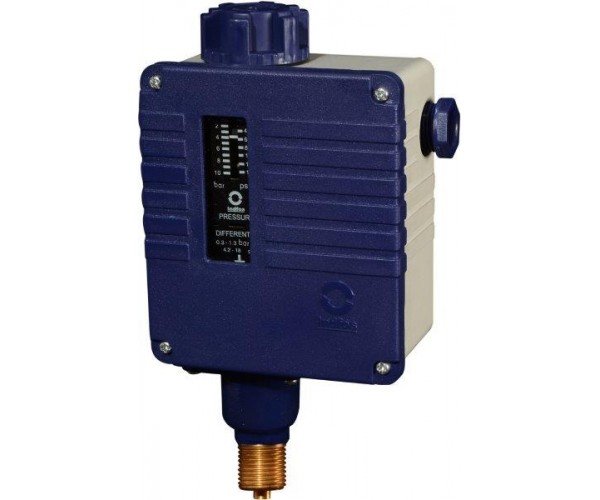

Bellow type pressure switch. Model : SWITZER – PSM-550-B4-11-CD ; INDFOS Model : (RT116-PB)

Bellow Type Pressure Switch With Weather Proof Enclosure

Compare
Add to wishlist
  ... people are viewing this right now
Category:
Description
Switch Type Pressure
Sensor Type Phosphor Bronze bellows
Wetted Parts Brass
Enclosure Cover: Abs Plastic ; Housing: Polyester ; Gasket Nitrile Weatherproof To Ip:67
On/Off Differential Adjustable : 0.3 To 1.3 Bar
Range 1 to 10 Bar
Maximum Working Pressure 16 Bar
Process Connection 3/8″ BSP (M)
Micro Switch 1x SPDT (1 NO + 1 NC)
Micro Switch Rating AC Rating — 15A, 250V / DC Rating — Resistive : 0.5A 110V / 0.25A 220V / 8A 24V
Electrical Entry 1/2″ NPT (F)
Maximum Fluid Temperature 70 Deg C
