ABB LLT100 Laser Level Transmitter | Official Supplier & Exporter to Indonesia & Asia-Pacific
Looking for a reliable, zero-maintenance level measurement solution for harsh industrial environments in Indonesia? WOW Electricals is a premier distributor and exporter of genuine ABB Instrumentation solutions, supplying the high-performance ABB LLT100 Laser Level Transmitter to Jakarta, Surabaya, Bandung, Medan, and industrial hubs across Southeast Asia.

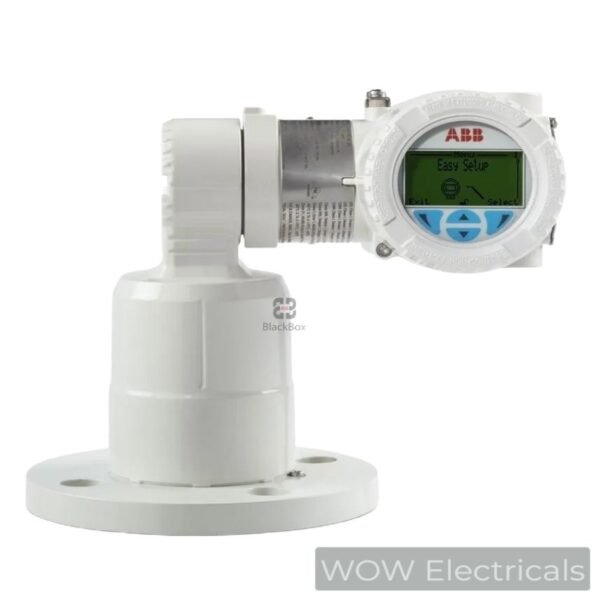

What is the ABB Laser Level Transmitter LLT100?
The ABB LLT100 is an advanced, non-contact level measuring instrument engineered specifically for continuous level, distance, and positioning measurement in extreme industrial environments. Utilizing an eye-safe Class 1 infrared laser ($905\text{ nm}$) with a narrow beam divergence ($<0.3^\circ$), the LLT100 penetrates severe dust, vapor, and fog to deliver pinpoint accurate readings where traditional ultrasonic or radar transmitters fail.
Key Benefits & Advantages
-
Zero Maintenance & Calibration: Eliminates mechanical wear and tear, reducing total cost of ownership (TCO) with no routine recalibration needed.
-
Explosion-Proof Rated: Fully certified for Class 1, Division 1 / Zone 1 hazardous locations.
-
2-Wire Loop Powered: Standard 4–20 mA analog output with digital HART 7 communication for seamless PLC/DCS/SCADA integration.
-
Touch-Through-the-Glass UI: Configure, calibrate, and troubleshoot directly through the explosion-proof glass window using the integrated digital LCD interface without opening the enclosure.
Technical Specifications Summary
| Feature / Parameter | Specifications |
| Measurement Range |
Liquids: 0.5 to 30 m (100 ft)
Solids: 0.5 to 100 m (330 ft)
Positioning: Up to 200 m (650 ft) with target |
| Accuracy & Resolution | $\pm 11\text{ mm}$ to $\pm 2\text{ cm}$ accuracy |
| Laser Optics | Eye-safe $905\text{ nm}$ Class 1 Infrared laser ($<0.3^\circ$ divergence) |
| Power & Output | 2-wire loop-powered (15.5–42 V DC standard / 15.5–30 V DC intrinsically safe); 4–20 mA + HART 7 |
| Housing & Protection | Powder-coated Aluminum or 316L Stainless Steel; IP66/IP67, NEMA 4X; Class 1, Div 1 / Zone 1 |
| Process Limits |
Temperature: –40°C to +60°C (up to 280°C with optional cooling tube)
Pressure: –1 to +49.6 bar |
| Signal Processing | Median filtering (2–25), filling/draining rates, signal damping (1–3,600s), 21-point linearization |
Modular Accessories & Mounting Options
Custom-tailor your ABB LLT100 configuration to match your exact tank, silo, or process vessel geometry:
-
Dust Tube: Prevents airborne particulates and liquid splash from dirtying the optical window.
-
Cooling Tube: Extends the maximum allowable process temperature up to 280°C (535°F).
-
Heated Window: Eliminates moisture condensation on the optical lens (requires 4-wire power).
-
Alignment Accessories:
-
Rotating Bracket & Swivel Flange: Ensures precise laser beam orientation on sloped solid heaps or turbulent liquid surfaces.
-
Laser Pointer Tool: Visual reference tool for rapid aiming during field setup.
-
-
Process Flanges:
-
Universal Flange: Fits both 2 in. ASME Class 150 and DN50 PN16 (Aluminum or Stainless Steel).
-
High-Pressure Flanges: Available in Class 150, Class 300, PN16, and PN40 ratings (Zone 0 barrier capability).
-
Hygienic Interface: 4 in. Triclover clamp connection for sanitary food, beverage, and pharmaceutical processing.
-
Target Industries & Industrial Applications
The ABB LLT100 delivers precise continuous inventory management and process monitoring across:
-
Mining, Aggregates & Cement: Ore pass level, crushers, clinker silos, and conveyor transfer points.
-
Oil & Gas / Petrochemicals: Storage tanks, condensate vessels, and hazardous process sumps.
-
Power Generation & Utilities: Coal bunker monitoring, fly ash silos, and water intake wells.
-
Pulp, Paper & Chemical Plants: Bleach towers, chemical digesters, and liquid storage vessels.
-
Food, Beverage & Pharma: Sanitary batching tanks and ingredient silos.
Complete Export Logistics & Documentation Support
As a premier industrial exporter, WOW Electricals simplifies international procurement for clients in Indonesia, Southeast Asia (ASEAN), the Middle East (GCC), East Asia, and Africa.
Standard Engineering Documentation Provided:
-
Factory Technical Datasheets, Product Catalogues, and Dimensional Drawings
-
Compliance Certificates & Test Reports
Comprehensive Export & Customs Documentation:
-
COO – Certificate of Origin
-
COC – Chamber of Commerce Certification
-
Commercial Invoice & Detailed Packing List
-
Air Freight & Customs Shipping Documentation
Request an Export Quote for ABB LLT100
Contact our international sales desk today for RFQs, bulk price lists, technical datasheets, and estimated shipping lead times.
-
Company: WOW Electricals
-
Website: wowelectricals.com
-
Call / WhatsApp: +91 95779 68786 / +91 98331 42421
-
Email: order@lemus.in / sales@lemus.in
