2CSR275053R1504 ABB DSE201 M C50 AC30 Residual Current Circuit Breaker

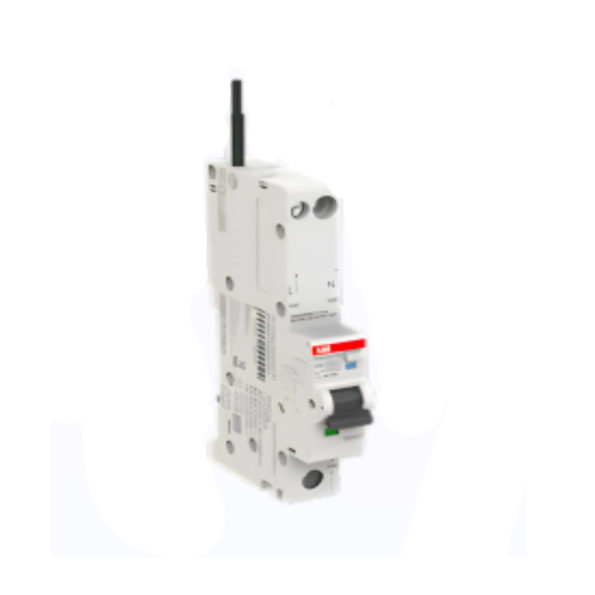

The ABB 2CSR275053R1504 DSE201 M C50 AC30-N Black Residual Current Circuit Breaker with Overcurrent Protection (RCBO) is a compact, single-module RCBO designed to protect single-phase circuits by combining residual current protection with overcurrent (overload and short-circuit) protection. Here’s a breakdown of its features and functionality:
Key Specifications
- Part Number: 2CSR275053R1504
- Model: DSE201 M C50 AC30 – N
- Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
- Poles: 1P+N (1 phase + neutral)
- Current Rating: 50 A
- Sensitivity: 30 mA, providing protection against direct contact by detecting low levels of earth fault currents
- Rated Voltage: 230 V AC (suitable for single-phase systems)
- Width: One-module design, saving space in distribution boards
Features and Benefits
- Dual Protection (RCBO): Combines the functions of an RCD (Residual Current Device) and an MCB (Miniature Circuit Breaker) to protect against both earth faults (leakage currents) and overcurrent conditions (overload and short-circuit). This helps ensure comprehensive circuit protection in a single device.
- Protection against Indirect and Direct Contact:
- Indirect Contact Protection: Provides protection against electric shock in case of contact with live parts indirectly (e.g., via earth fault currents).
- Direct Contact Protection: Offers additional protection against direct contact with live parts at a sensitivity of 30 mA.
- Unswitched Neutral: The neutral conductor remains unswitched, ensuring continuous connection even when the RCBO trips, which helps stabilize the system and minimize interruptions.
- Flying Leads:
- Neutral Flying Lead: Available in either blue or black for easy identification and wiring.
- Functional Earth Lead: White lead for connecting to the earth, necessary for proper functioning of the RCBO.
- Compact One-Module Width: Designed to fit in minimal space, allowing for efficient use in distribution boards where space is limited.
- High Sensitivity: With a 30 mA sensitivity, it provides effective protection for end users, detecting even small leakage currents, making it suitable for additional protection in areas with higher risk of electric shock (e.g., bathrooms and kitchens).
- Applications: Ideal for residential and commercial single-phase circuit protection, especially in environments where user safety and equipment protection from electrical faults are crucial.
Applications
The ABB DSE201 M C50 RCBO is suitable for:
- Residential Buildings: Protects single-phase circuits in homes, offering high safety levels for end users.
- Commercial Installations: Used in commercial circuits where both overcurrent and earth fault protection are necessary.
- Sensitive Areas: Kitchens, bathrooms, or areas with higher risk of electric shock where 30 mA sensitivity provides additional protection.
This RCBO is designed for reliable circuit protection in a compact form, meeting high standards of safety, efficiency, and reliability in modern electrical installations.
