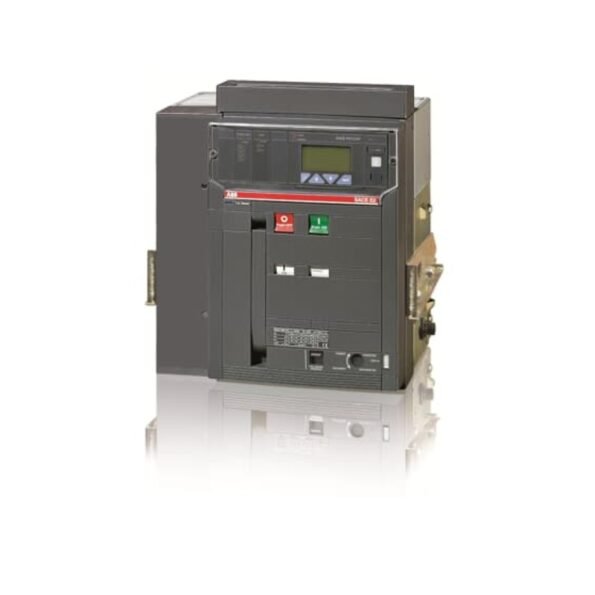

1SDA059336R1 ABB E2S 1000 PR123/P-LSIG In=1000A 4p W MP

The ABB 1SDA059336R1 E2S 1000 PR123/P-LSIG is a moving part designed for the SACE Emax E2S circuit breaker series. Rated at 1000A and featuring a 4-pole (4P) configuration, this component is tailored for high-capacity power systems needing comprehensive overcurrent protection.

Key Product Details:

• Model: ABB E2S 1000 PR123/P-LSIG
• Current Rating: 1000A (Amperes)
• Poles: 4-pole (4P) configuration, suitable for balanced three-phase systems.
• Protection Unit:
  • PR123/P-LSIG Overcurrent Release: Offers advanced LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) protection, addressing a full range of overcurrent situations for optimal safety and system reliability.
  • Equipped with enhanced programmability, this protection unit allows precise adjustments, enabling tailored protection for various application demands and maximizing operational safety.
• Auxiliary Contacts:
  • Fitted with 4 auxiliary contacts, facilitating integration with monitoring and automation systems.
  • The auxiliary contacts provide real-time feedback on the breaker’s status (open/closed), ensuring clear status visibility and supporting efficient operational management.

Applications:

This ABB E2S 1000 PR123/P-LSIG moving part is ideal for high-demand industrial and commercial environments, especially in power distribution systems where reliable overcurrent protection is essential. It is commonly used in large facilities, critical infrastructure, and other high-capacity setups requiring precise circuit protection.

Additional Benefits:

• Modular Compatibility: Easily integrates with other SACE Emax series components, supporting flexible power distribution setups.
• Quality Assurance: Built to ABB’s rigorous standards for durability and performance, ensuring long-term safety and reliability.

The ABB 1SDA059336R1 E2S 1000 PR123/P-LSIG provides advanced overcurrent protection, configurable settings, and robust monitoring capabilities for complex, high-capacity power applications.
