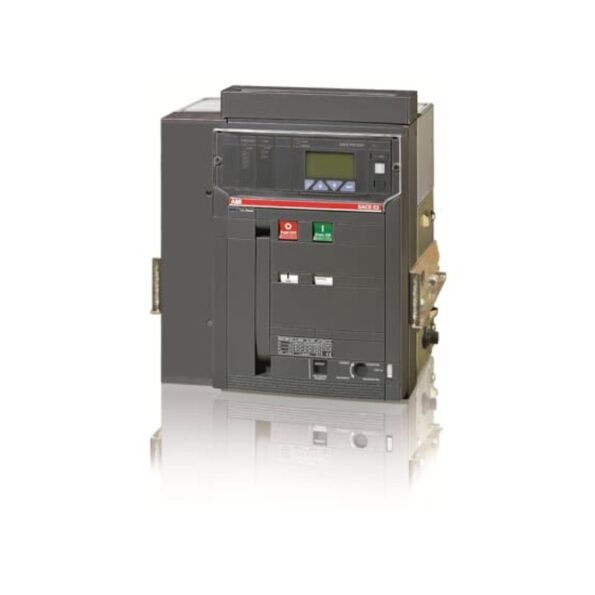

1SDA058313R1 ABB E2S 800 PR123/P-LSIG In=800A 4p W MP

The ABB 1SDA058313R1 model is part of the Emax E2S series, specifically designed as a high-performance circuit breaker for low-voltage applications. Here’s a detailed overview of its specifications and features:

• Model: ABB E2S 800 PR123/P-LSIG
• Type: Moving Part for Circuit Breaker
• Rating: 800A (Amperes)
• Poles: 4-pole configuration (4P), allowing it to handle 3-phase power systems effectively.

Key Specifications:

• Overcurrent Release: PR123/P-LSIG
  • PR123/P-LSIG is an advanced trip unit with LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) protection functionalities. It offers comprehensive protection against overloads, short circuits, and ground faults, making it ideal for critical applications where reliable overcurrent protection is essential.
  • This trip unit can be configured to suit the protection requirements of specific electrical systems, enhancing flexibility and operational safety.
• Auxiliary Contacts:
  • Equipped with 4 auxiliary contacts, this circuit breaker is ready for applications where external signaling or monitoring is needed. Auxiliary contacts allow the circuit breaker to interface with control and automation systems, enhancing system oversight.
• Status Indication:
  • The circuit breaker provides clear position indicators (open/closed), which improves safety by allowing operators to easily verify its status.

Additional Benefits:

• Reliability: As part of ABB’s SACE Emax series, this model meets international standards for safety and performance, ensuring a high level of durability.
• Modular Design: The modular setup of the SACE Emax range allows for easy integration into various power distribution systems, enabling flexible configurations to meet evolving needs.
