1SDA055778R1 ABB E1N 1600PR 121/P – LSIGIn = 1600A 3p WMP

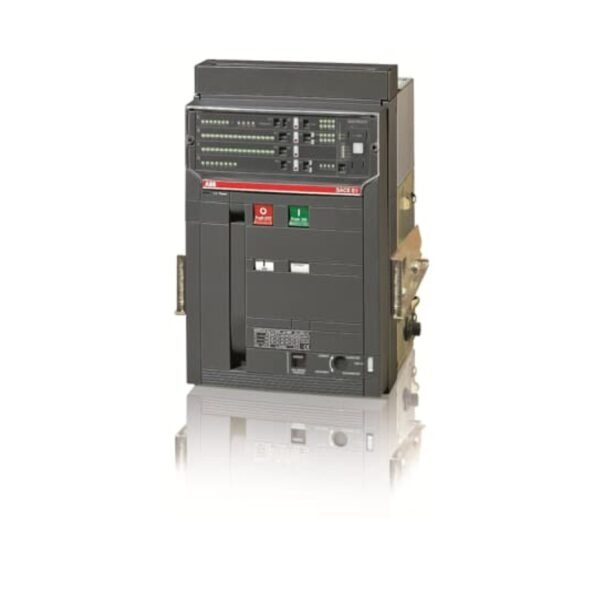

The 1SDA055778R1 ABB E1N 1600PR 121/P component is a robust moving part for the ABB SACE Emax E1N 1600A circuit breaker, built for demanding environments and high-amperage requirements in three-phase systems. Here’s a deeper look into its specifications and advantages:

Technical Specifications:

1. Rated Current (In): 1600A, designed for heavy electrical loads.
2. Voltage Rating: Suited for medium and low-voltage applications, typical in industrial power distribution.
3. Poles: Three-pole (3p) configuration, offering balanced protection across phases in three-phase systems.
4. Overcurrent Protection: PR121/P-LSIG release unit offers comprehensive overcurrent protection modes:
   • L (Long-Time) for overload protection.
   • S (Short-Time) to clear faults faster.
   • I (Instantaneous) to handle high-magnitude short circuits.
   • G (Ground Fault) protection, reducing risks associated with ground faults.
5. Integrated Auxiliary Contacts: Equipped with 4 auxiliary contacts for enhanced communication and monitoring capabilities, allowing external systems or panels to receive circuit breaker status (open/closed) signals.

Additional Features:

• Self-Diagnostics and Alarm Functions: PR121/P-LSIG features diagnostic capabilities to monitor internal parameters, assisting with predictive maintenance.
• Selectable Trip Curves: Adjustable settings within the PR121/P-LSIG allow for customized trip curves, enhancing adaptability to specific load conditions.
• Reliability and Durability: Engineered for industrial-grade environments, the E1N model includes robust housing and high-quality components for long-term use under stress.

Applications and Use Cases:

Ideal for complex electrical distribution systems in:

• Manufacturing Plants: Ensures stability for high-power machinery and prevents downtime from overcurrent issues.
• Data Centers: Protects sensitive equipment from short circuits and power surges, maintaining consistent power flow.
• Infrastructure and Utilities: Commonly used in energy grids and public utilities to manage large loads and variable currents safely.

Benefits:

• Comprehensive Protection: LSIG protection modes help tailor fault protection, reducing wear on equipment and preventing downtime.
• Enhanced Control and Monitoring: The auxiliary contacts and clear position indicators allow for remote control, enabling operators to manage circuit status from afar.
• Flexibility in Fault Settings: The trip curve adjustability makes it versatile for different power loads and environmental requirements.

This ABB model is an excellent choice for facilities that prioritize operational efficiency, system protection, and reliable overcurrent and fault management across diverse industrial and commercial sectors.
