1SDA038361R1 ABB 5 AUX.CONTACTS ISOL-CONN. IND.E1/6

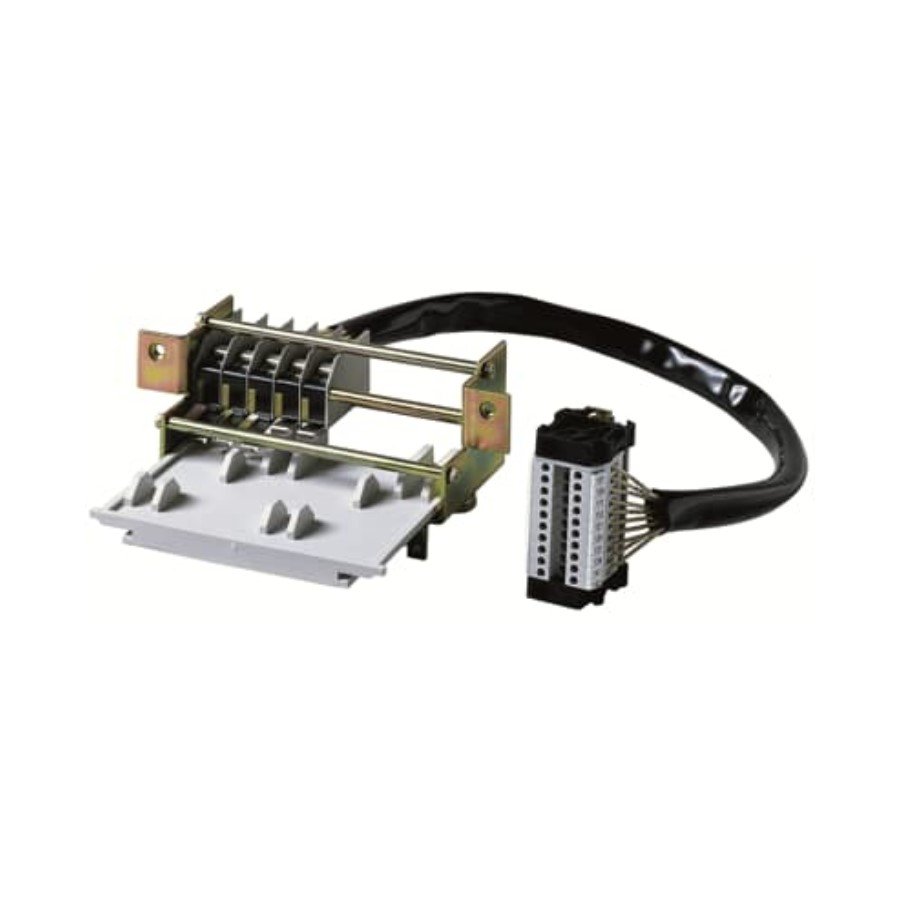

The 1SDA038361R1 ABB Auxiliary Contact Module is a specialized accessory for monitoring and signaling the connected or isolated position of a circuit breaker. Designed for Emax E1/6 series circuit breakers, it is suitable for both three-pole and four-pole configurations and offers 5 auxiliary contacts for seamless integration into control and monitoring systems.

Key Features:

1. Contact Configuration:
   • Provides 5 auxiliary contacts for enhanced monitoring and automation.
   • Configured to indicate whether the circuit breaker is in a connected or isolated position.
2. Compatibility:
   • Specifically engineered for Emax E1/6 series circuit breakers.
   • Works with both fixed three-pole and four-pole breaker versions, ensuring broad applicability.
3. Functionality:
   • Signals the circuit breaker’s position status to control systems, enabling real-time monitoring.
   • Essential for systems requiring precise position feedback for safety and operational efficiency.
4. Applications:
   • Ideal for industrial power distribution, building automation, and critical infrastructure requiring high reliability.
   • Ensures proper status feedback during maintenance, troubleshooting, or system reconfiguration.
5. Safety and Efficiency:
   • Improves safety by clearly indicating breaker status to operators, reducing the risk of accidental energization.
   • Facilitates better system management by providing accurate and real-time position data.

Specifications:

• Part Number: 1SDA038361R1.
• Contact Type: Auxiliary contacts for position indication.
• Number of Contacts: 5.
• Breaker Compatibility: Emax E1/6 series (Three-pole and Four-pole, Fixed type).
• Indication Positions: Connected or Isolated.

Benefits:

• Accurate Monitoring: Provides precise feedback for connected/isolated positions.
• Flexible Integration: Compatible with various monitoring systems and PLCs.
• Enhanced Safety: Reduces risks associated with improper breaker handling or position uncertainty.
