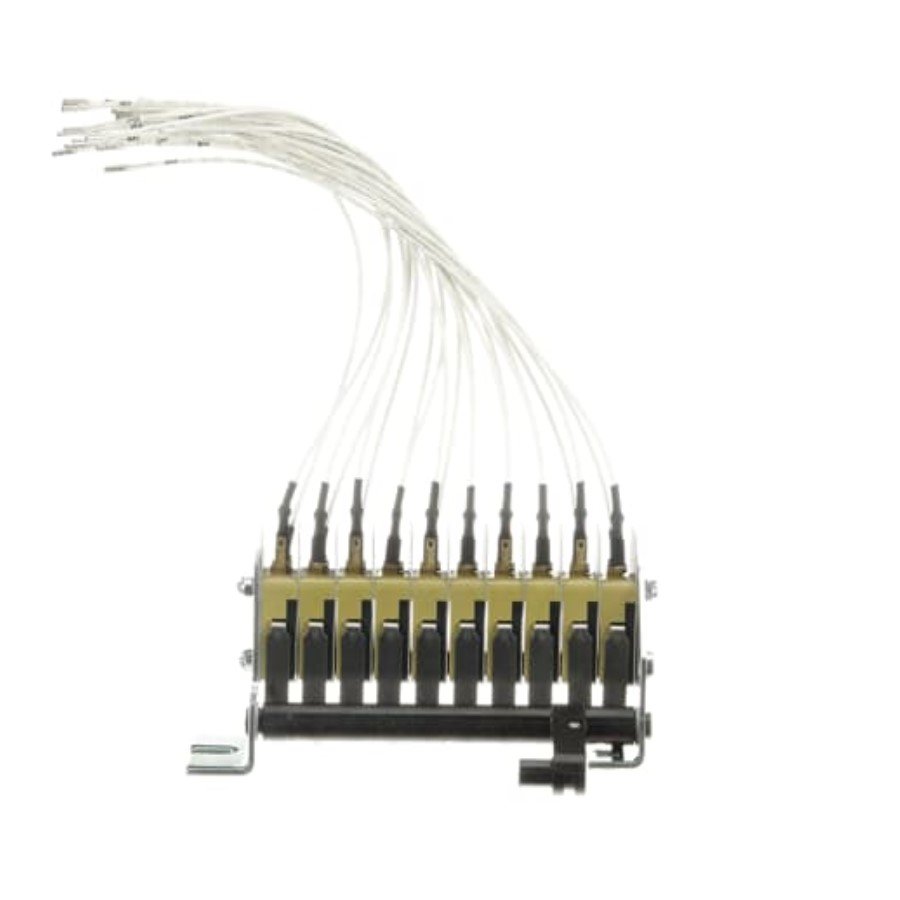

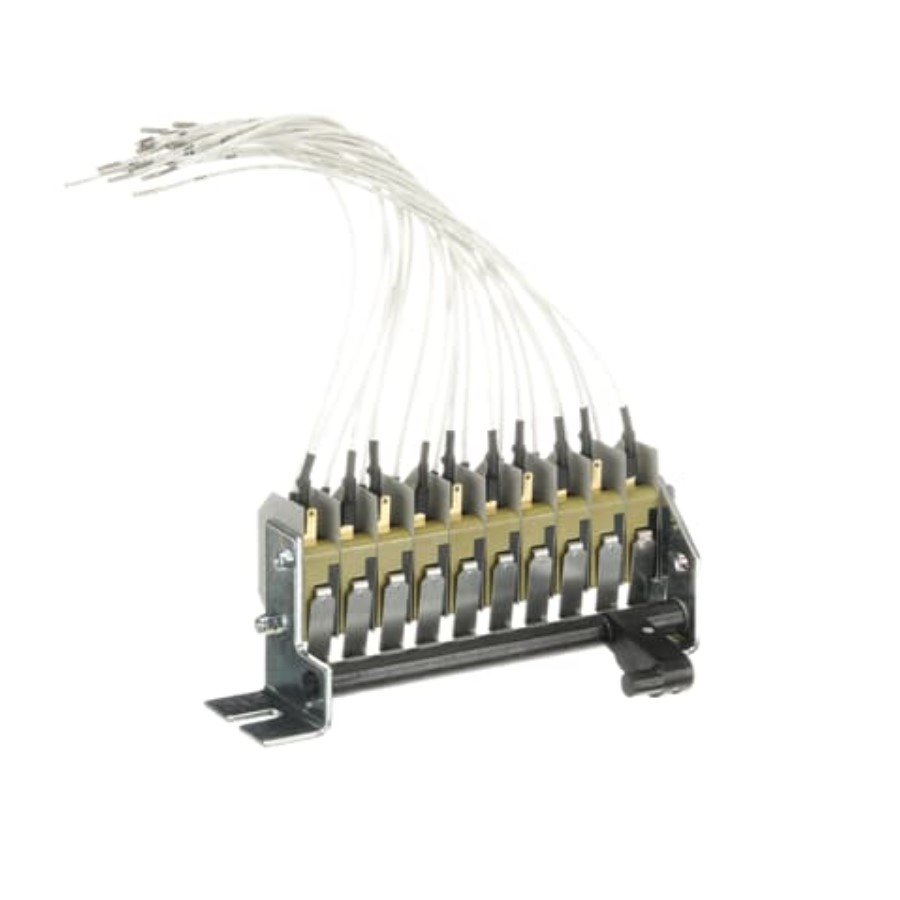

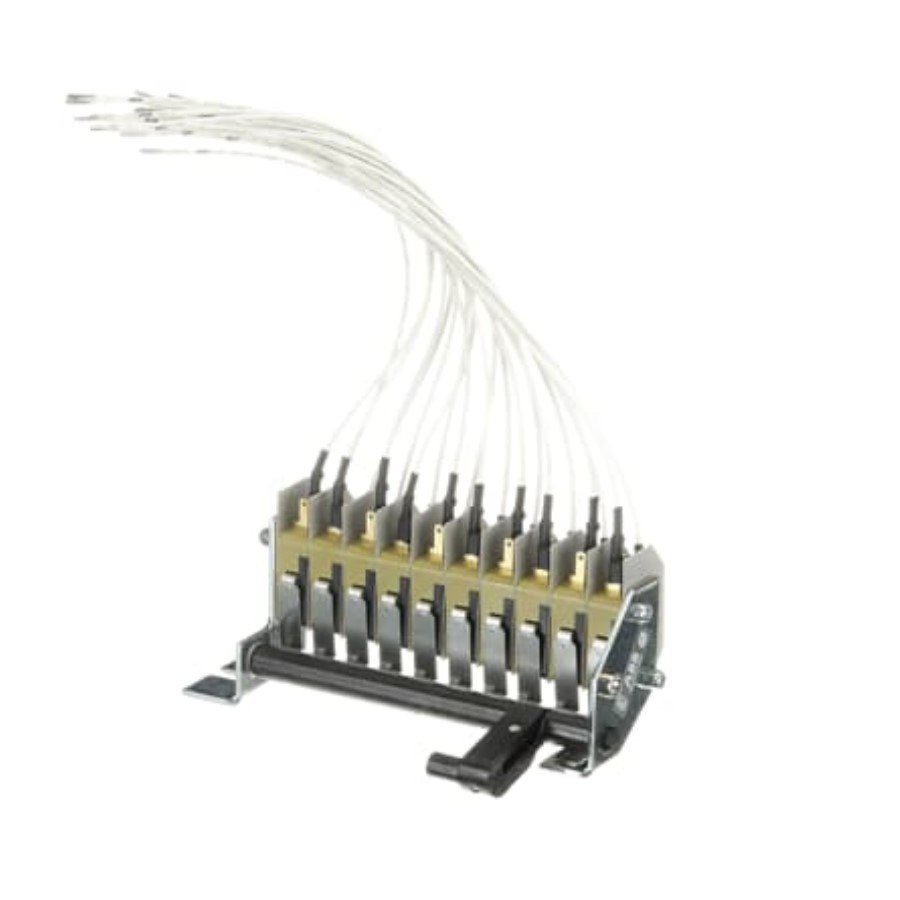

1SDA038327R1 ABB E1/6 10 OPEN/CLOSED AUX.CONTACTS

The 1SDA038327R1 is an ABB auxiliary contact module designed for use with Emax E1.2/E1.4/E1.6 circuit breakers. It provides accurate status feedback about the breaker’s position, indicating whether it is open or closed, which is essential for remote monitoring and control in modern electrical systems.

Key Features:

1. Functionality:
   • Monitors and signals the open or closed position of the circuit breaker.
   • Sends status updates to connected control or monitoring systems, enhancing operational visibility.
2. Auxiliary Contact Details:
   • Equipped with 10 auxiliary contacts for maximum flexibility in system design.
   • Suitable for integration into control circuits, PLCs, or automation systems.
3. Compatibility:
   • Designed specifically for ABB Emax E1/6 series circuit breakers.
   • Seamlessly integrates into Emax systems, ensuring reliable communication of breaker status.
4. Applications:
   • Commonly used in industrial power distribution, building automation, and critical infrastructure setups.
   • Ideal for environments where real-time breaker position status is vital for safety and operational efficiency.
5. Safety and Efficiency:
   • Enhances system safety by providing immediate and accurate status feedback.
   • Reduces downtime by enabling faster response to breaker status changes.

Specifications:

• Part Number: 1SDA038327R1.
• Contact Type: Auxiliary contacts for position indication (Open/Closed).
• Number of Contacts: 10.
• Breaker Compatibility: Emax E1/6 series (E1.2, E1.4, E1.6).

Benefits:

• Enhanced Monitoring: Provides real-time breaker position status for effective power management.
• Integration Flexibility: Works with various control and monitoring systems, including PLCs.
• Increased Reliability: Ensures accurate communication of breaker status, reducing operational risks.
