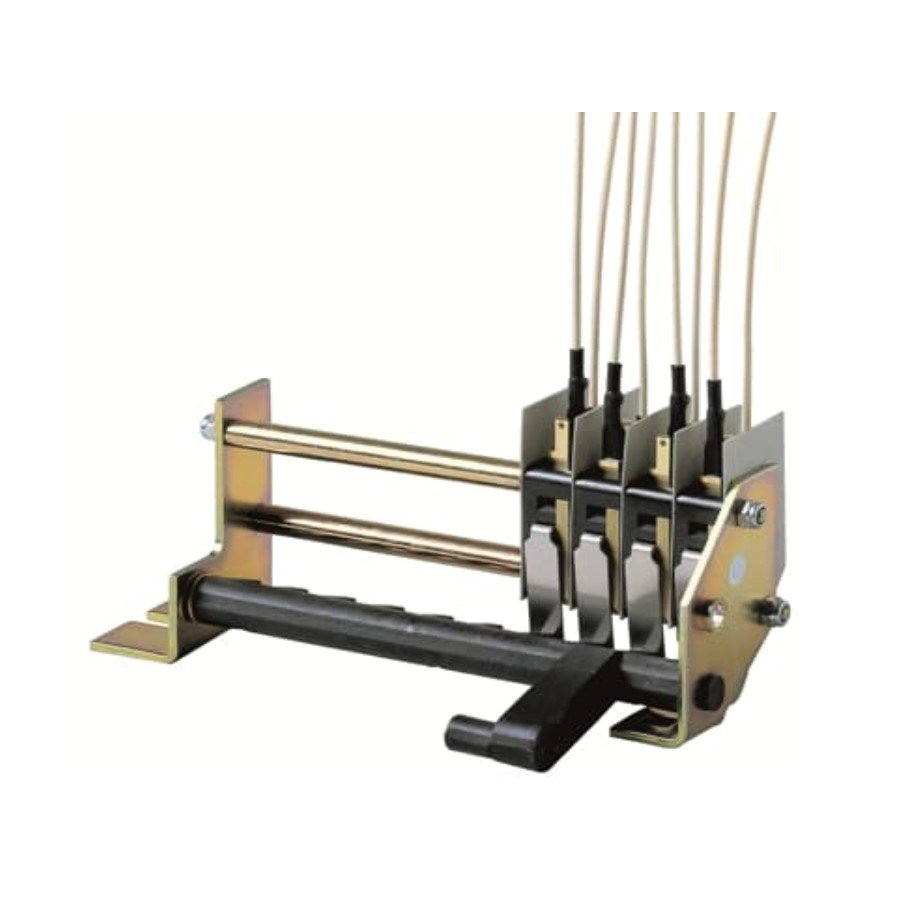

1SDA038326R1 ABB E1/6 4 OPEN/CLOSED AUX.CONTACTS

The 1SDA038326R1 is an ABB auxiliary contact module designed to provide status feedback regarding the open or closed position of circuit breakers in the Emax E1.2/E1.4/E1.6 series. It features 4 auxiliary contacts to support monitoring and automation needs in industrial and commercial power systems.

Key Features:

1. Contact Configuration:
   • Includes 4 auxiliary contacts for accurate position monitoring.
   • Configurable as Normally Open (NO) or Normally Closed (NC) to suit system requirements.
2. Functionality:
   • Delivers real-time feedback on whether the circuit breaker is in an open or closed state.
   • Essential for remote monitoring and integration with control systems.
3. Compatibility:
   • Specifically designed for ABB Emax E1.2, E1.4, and E1.6 series circuit breakers.
   • Seamlessly integrates with modern automation and monitoring systems.
4. Applications:
   • Commonly used in industrial automation, building management systems, and energy distribution networks.
   • Ensures operational safety by providing precise status updates in critical power systems.
5. Safety and Efficiency:
   • Enhances safety by allowing operators to quickly verify breaker status during maintenance or fault conditions.
   • Improves system reliability by enabling proactive monitoring.

Specifications:

• Part Number: 1SDA038326R1.
• Contact Configuration: 4 auxiliary contacts (configurable NO/NC).
• Breaker Compatibility: Emax E1/6 series (E1.2, E1.4, E1.6).

Benefits:

• Accurate Monitoring: Provides clear feedback on breaker status for real-time decision-making.
• Flexible Integration: Compatible with various control and automation systems.
• Enhanced Safety: Ensures quick identification of breaker positions to minimize operational risks.
